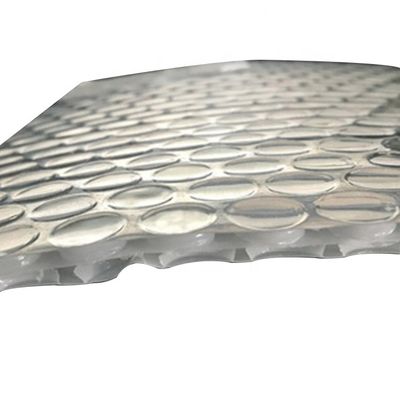

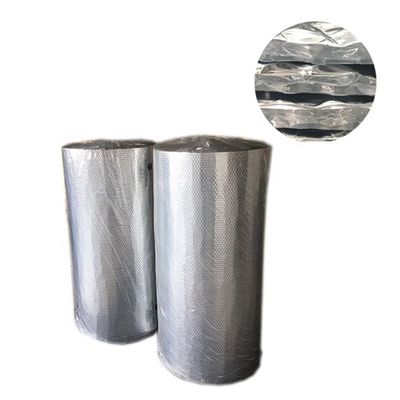

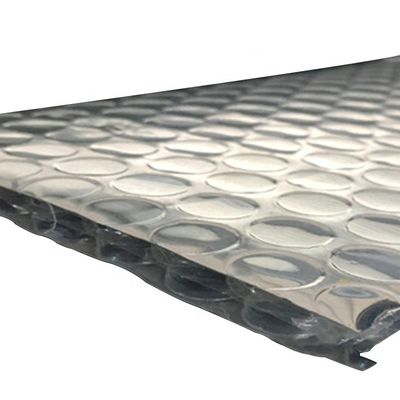

Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation

Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation

    • Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation
    • Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation
    • Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation
    • Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation
  • Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation

    Product Details:

    Place of Origin: CHINA
    Brand Name: TOP
    Model Number: T-H-B-005

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: Negotiable
    Packaging Details: po transparent bags
    Delivery Time: 25 days after receiving payment
    Payment Terms: L/C, T/T
    Supply Ability: 500000 sqm/day
    Contact Now
    Detailed Product Description
    Reflectivity: 96-97% Roll Size: 1.2mx 30m Length
    Density: 20-23kg/m3 Thickness: 5mm
    Structure: AL/EPE/AL Feature: Heat Insulation,waterproof, Fireproof, Moisture Barrier
    Color: Silver Or Other Colors Can Be Printed EPE Thickness: 5mm
    Application: Wall,floor,roof, Protect Packages
    High Light:

    Laminated Reflective Bubble Wrap Insulation

    ,

    5mm Reflective Bubble Wrap Insulation

    ,

    30m Aluminum Foil Heat Insulation

    Aluminum foil bubble series

    The heat-reflecting ability of pure aluminum foil (aluminum-coated film) and the excellent barrier performance of the heat-insulating material, plus the thermal insulation ability of air bubble inside, make this series of aluminum foil products has greater advantage than similar insulation materials!



    Product Details:



    Product name bubble insulation
    Material structure aluminum foil / bubble / aluminum foil
    Aluminum foil thickness 7-12 microns
    Bubble thickness 3-10mm (Can be customized)
    Bubble height 5-20mm (Can be customized)
    Square gram weight 180-560g / m2
    Packing size 1.2m * 40m (Can be customized)
    Reflectivity 97%
    Thermal conductivity 0.0409w / m2 * k
    Thermal resistance 2.9m2 * k / w
    Withstand temperature -40 ℃ —80 ℃



    Product features:



    1. no nocuous substance and accord with the standards of ISO14000.

    2. high quality material for warm-keeping and energy-saving.

    3. absorb sound,reduce noise,and provide cushioning function.

    4. water and leak proof, anti-flaming, easy to be processed and installed.

    5. durable in use and endurable to heat,cold and chemical reaction. manufactory



    Product Principle:



    Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation 0Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation 1



    Product Usage:



    1. Used in Roof insulation / Attic Insulation / Stud Walls Insulation

    2. Used in Crawl Spaces Insulation / Under Concrete Barrier&Insulation

    3. Used in HVAC Duct Insulation / Metal Building Insulation

    4. Used in Post Frame Building insulation

    5. Used in Water Heater Insulation Blankets or Jackets.

    6. Used in Radiant Floor Insulation / Garage Door Insulation

    7. Used in Ultra/Stanard Under Concrete Barrier 8. Used in Duct Wrap Insulation

    Aluminum Foil 5mm Laminated Reflective Bubble Wrap Insulation 2
