Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

    • Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
    • Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
    • Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
    • Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
  • Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

    Product Details:

    Place of Origin: CHINA
    Brand Name: TOP
    Model Number: T-H-B-003

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: po transparent bags
    Delivery Time: 25 days after receiving payment
    Payment Terms: L/C, T/T
    Supply Ability: 500000 sqm/day
    Contact Now
    Detailed Product Description
    Reflectivity: 96-97% Roll Size: 1.2mx 38.1m Length
    Thickness: 3mm Density: 20-23kg/m3
    Structure: Metalised Foil/epe Feature: Heat Insulation,waterproof, Fireproof, Moisture Barrier
    Color: Silver Or Other Colors Can Be Printed Application: Wall,floor,roof, Protect Packages
    High Light:

    epe foam roll

    ,

    epe foil insulation

    3mm , 1.2x38.1m Reflective PE EPE Foil thermal and heat insulation








    Characteristics:

    1) Smellless and non-toxic.
    2) Clean,thin and lightweight.
    3) Outstanding safety and environmental benefits.

    4) Moisture-proof, heat preservation and energy conservation.
    5) Easy to install, high efficiency.
    6) Cost-effective and versatile.






    Application:

    1.Used in Roof ,attic ,stud walls and crawl spaces insulation

    2.Used in Under Concrete ,HVAC Duct and metal building insulation

    3.Used in Post Frame Building ,water heater insulation blankets or jackets, radiant floor and garage door insulation

    4.Used in Ultra/Stanard Under Concrete Barrier,duct wrap insulation

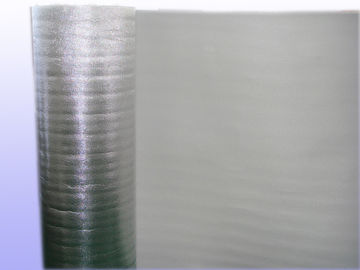

    Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness 0

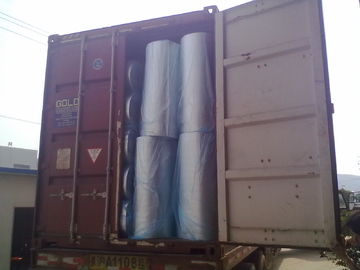

    Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness 1





    Material Structure Metalised foil
    Thermal conductivity 0.034W/MO
    Apparent Density 46KG/M^3
     Density 20-23KG/M^2
    Roll Width max width is 1.58m,Length can be customized)
    Water Vapour Transmission 0.012G/M^2 KPA
    Tensile strength(MD) 13.43Mpa
    Tensile strength(TD) 14.58Mpa
    Reflectivity 9 6%-97%
    Thickness 3mm
    Body weight 180g/m2

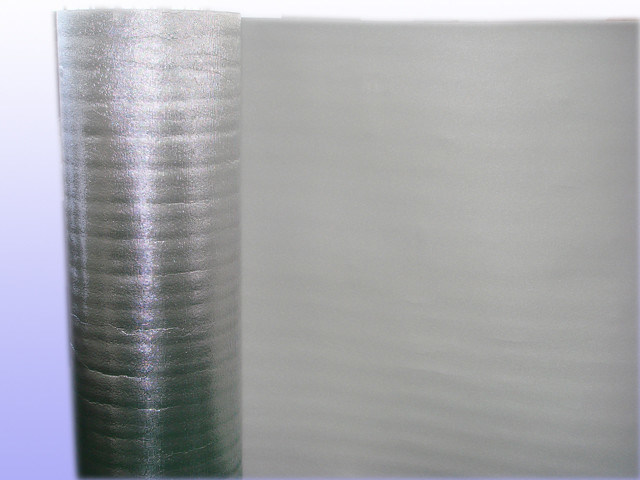

    Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness 2

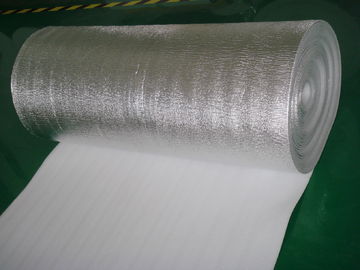

    Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness 3





    • Ahorro energético.
    • Aislamiento total.
    • Excelentes acabados finales.
    • Elimina el calor radiante.
    • Rechaza el calor en climas cálidos.
    • Retiene el calor en zonas frías.
    • Es liviano y fácil de instalar.
    • Libre de CFC.
    • No provoca alergia.
    PERMEABILIDAD AL AGUA Impermeable Dir. UEAtc
    PERMEABILIDAD AL VAPOR DE AGUA 0.033 g/m2hkPa - 0.05 perms (gr/ft2*h*in.hg) ASTM E 96/IRAM 1735
    EMITANCIA 0.03 ASTM C-1371-98
    RESISTENCIA A HONGOS Resistente / No promueve crecimiento de hongos – moho ASTM C 1338
    RESISTENCIA A LA TENSIÓN 13.5 N/cm ASTM D-683
    TEMPERATURA DE OPERACIÓN - 20ºc / 80ºc ASTM C-1224
